Common Specifications |
|---|---|

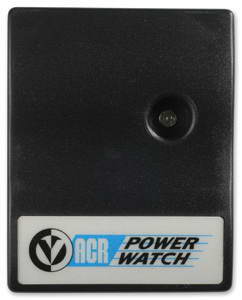

| ACR PowerWatch logger records essential power quality events and disturbances. It provides safe, stand alone operation with no wires, alligator clips or other exposed wiring. With the capacity to record up to 4000 events and an optical alarm indicating events occurred, ACR PowerWatch is the easiest way to monitor and record essential voltage disturbance information. | |
| Size | 85 mm x 68 mm x 35 mm. (3.35" x 2.65" x 1.35") |
| Weight | 120 g (4 oz) |
| Case Material | NorylR Plastic |
| Operating Limits | -40 to 70˘XC (-40 to 158˘XF) and 0 to 95% RH (non-condensing) |
| Battery | 3.6 Volt Lithium |
| Battery Life: | 10 years under normal use (factory replaceable) |
| Memory Size | 32 KB (4000 events) |
| Sampling Method | Continuous (half cycle integrated) |
| Storage Method | First-in, First-out or Fill-then-stop |
| Fuse | 1/16A fast-blow (non-replaceable) |
| Alarm Type | Optical (flashing red LED) |
| Event Types Detected | Surges, sags, impulses, dropouts, outages, frequency variations |
| Measurement Locations | Hot-to-Neutral and Neutral-to-Ground |
| Plug Configurations | 120 Volt (for North America) - see PowerWatch 120V 240 Volt (for Australia, UK and Continental Europe) - see PowerWatch 240V |
| PC Requirements | IBM PC or 100% compatible with at least 2MB RAM, 2MB of hard drive disk space and one free serial port |
| Software Requirements | PowerWatch Software - compatible with WindowsR 3.1, 95, 98, Me, NT, 2000 and XP |
| Certifications | CSA, NRTL/C, and UL3111-1 |
