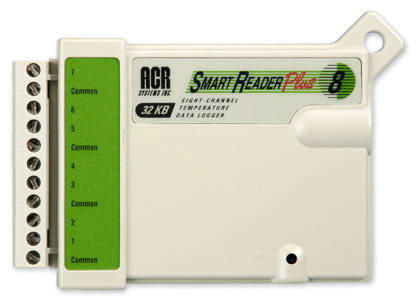

ACR記錄儀-ACR SmartReader Plus
SmartReader Plus 1、2....8
|
多頻道 , 可設定 ,
12 位元元資料記錄儀
|
|
|
|
|
|
|
產品特性
大小 |
107 x 74 x 22 毫米 (4.2 x 2.9 x
0.9") |
重量 |
110 克 (3.75 盎司 ) |
外殼材料 |
Noryl 塑料 |
工作界限 |
-40 ℃ 至 70 ℃ (-40 ℉ 至 158 o
F) and 0 至 95% 相對濕度 ( 没有冷凝水 ) |
時鍾準確性 |
每日 +/-2 秒 |
電池 |
3.6 伏特鋰電 ; 1 安培 - 小時 |
内存大小 |
32 K (21,500 讀數 )
128 K
(87,000 讀數 )
1.5 MB (1,000,000 讀數 ) |
取樣方法 |
1. 連續的 ( 先進先出 - 取樣速度不許超過 8 秒 )
2. 装滿後停止運作 ( 填滿後停止運作 ) |
取样比率 |
用者選擇比率由每秒 25 次至 8 小时 1 次 ( BP-101
電池包 或 PS-201 電力提供的取樣比率快於 8 秒。詳情請看配件部分 ) |
分辨率 |
12 位 (4096 份之一 ) |
功率消耗量 |
5 至 10 微安培 ( 連續的 ) |
電腦要求 |
IBM PC 或 100% 相容微軟窗口 3.1, '95, '98, 或 NT, 至少 2 MB 記憶體 , 2 MB 硬碟機空間及一個置序列介面 |
產品認可 |
Meets Part 15 for Digital Devices
of the Code of Federal Regulations of the
Federal Communications Commission (FCC). Meets
Class A radiated and conducted emission
requirements of Section 2 of the Radio
Interference Regulations of Communications
Canada. IEC801-2, 3, 4 and EN55011 covering ESD,
RFI Immunity, EFT/Burst and Radiated Emissions
respectively for the Commission of the European
Communities (CE). |
對X光的阻力 |
Tested for protection against a
160kV dose @ 5mA for 30 seconds (150mA-sec) @ 38
inches F.F.D. (about 100 times that of an
airport X-Ray machine). Tested for protection
against Gamma Ray (equivalent to 0.137 - 1.38
mega volts) IR 192 - 28 curies @ 30 second
exposure source to object distance
5". |
准確性曲線 |
ACR SmartReader Plus
内置熱敏電阻的內部曲線準確性 |
軟件特性 |
TrendReader - SmartReader Plus
資料記錄儀軟體
即時圖表軟體
回話軟體
|
網絡及遙控通訊 |
ACR SmartReader Plus 網絡及遙控通訊 |
内置温度傳感器 ( 除了型號 9 外 ,
所有型號全有着的)
類型 |
陰性温度系数熱敏電阻 10,000 奥姆 @ 25 ℃ (77
℉) |
耐受度
(只供感測器 ) |
+/-0.2 ℃, 范圍0~70 ℃
(+/-0.3 ℉, 范圍:32~158 ℉)
|
范圍 |
-40 ~ 70 ℃ (-40 ~ 158 ℉) |
分辨率 |
0.03 ℃ @ 25 ℃ (0.05 ℉ @ 77 o
F).
比較佳的 0.07 ℃ (0.12 ℉) 介乎 -25 ℃ (-13 o
F) 及 70 ℃ (158 o F).
比較佳的 0.13 ℃ (0.23 ℉)
介乎 -40 ℃ (-40 ℉) 及 -25 ℃ (-13 ℉) |
|
|
|
|
| |
